Panorama Elevator Cabs

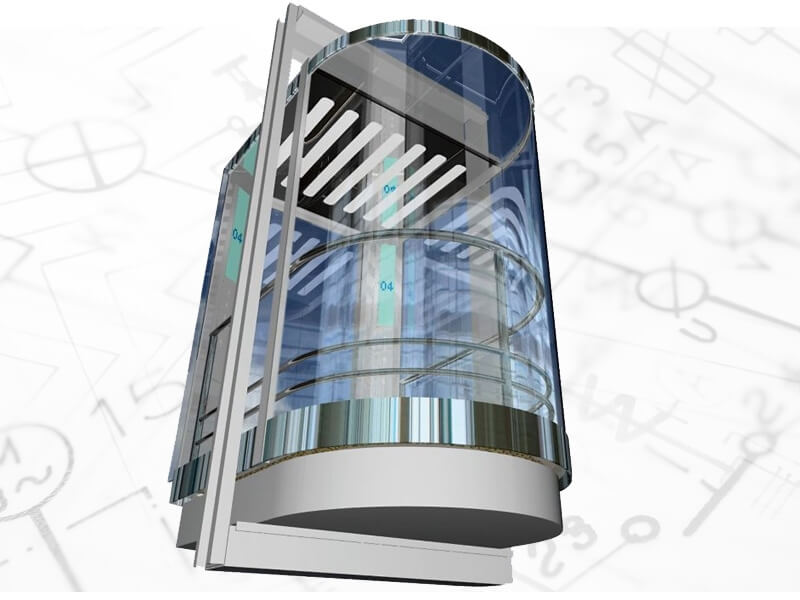

CURVED PANAROMA CABS
Rated Load (Kg):
225-5000
Suspension:
1:1 | 1:2 | 1:4
Machine Room:
MR
Min. Machine Room Height (mm):
2200
Max. Travel (m):
90
Max. Number of Stops:
30
Max. Speed (m/s):
3
Min. Pit Depth (mm):
v ≤ 1.0 m/s 1400 | v = 3.0 m/s 2200
Min. Headroom (mm):
v ≤ 1.0 m/s 3800 | v = 3.0 m/s 5500
Compiles with:
TS EN 81-20/50

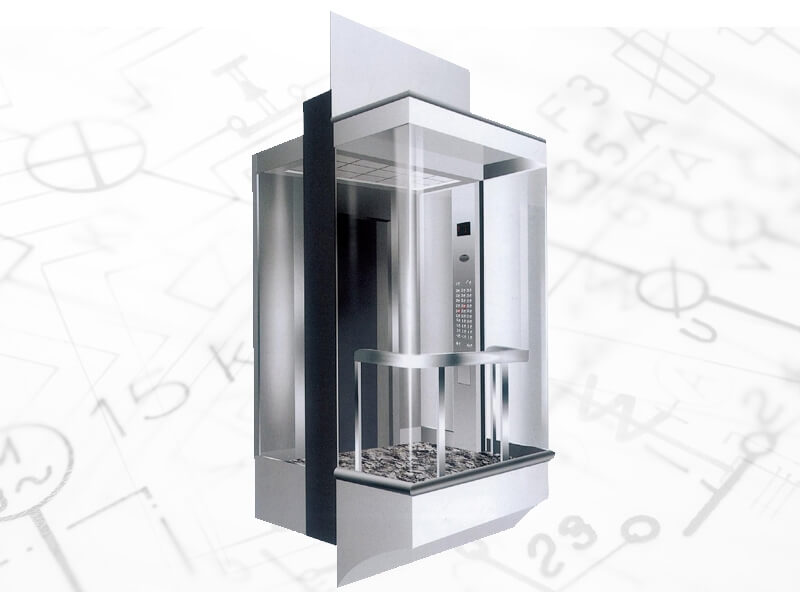

SQUARE PANORAMA CABS
Rated Load (Kg):
225-5000
Suspension:
1:1 | 1:2 | 1:4
Machine Room:
MR
Min. Machine Room Height (mm):
2200
Max. Travel (m):
90
Max. Number of Stops:
30
Max. Speed (m/s):
3
Min. Pit Depth (mm):
v ≤ 1.0 m/s 1400 | v = 3.0 m/s 2200
Min. Headroom (mm):
v ≤ 1.0 m/s 3800 | v = 3.0 m/s 5500
Compiles with:
TS EN 81-20/50
