Machine-Room-Less Elevators
(MRL)

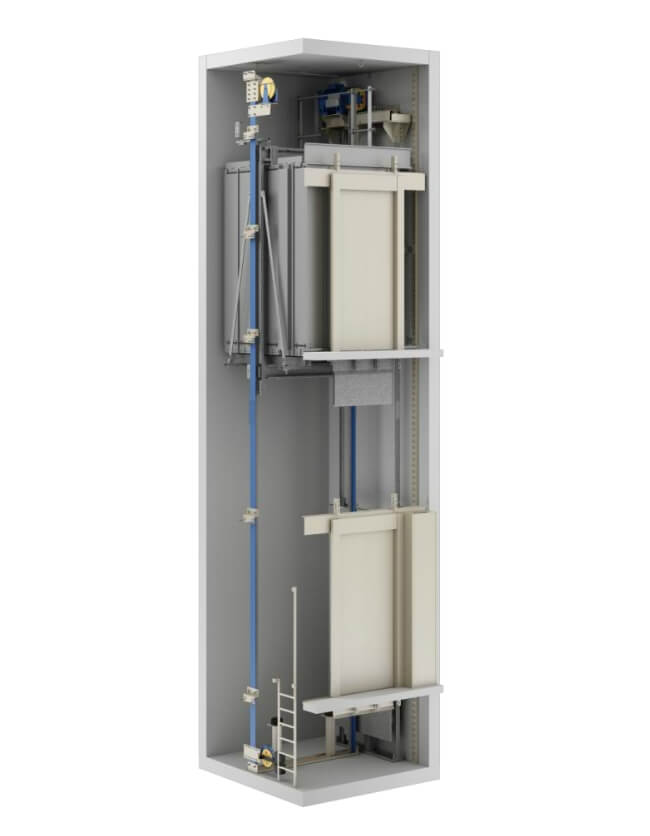

ABOUT MACHINE-ROOM-LESS (MRL) ELEVATORS
Machine roomless elevators are environmentally friendly products that are extremely efficient and provide an aesthetically pleasing appearance, as gearless motor technology is used.
MAST-MRL

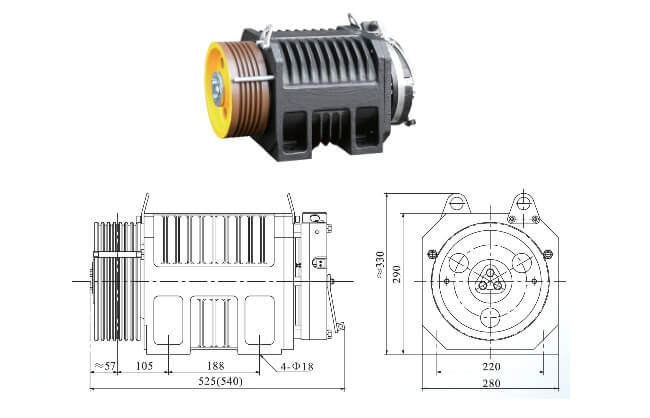

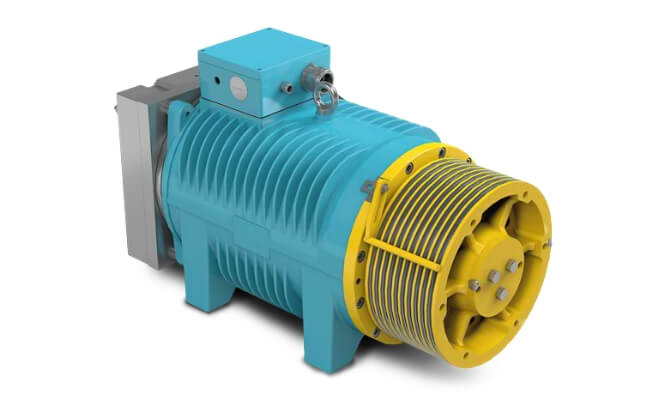

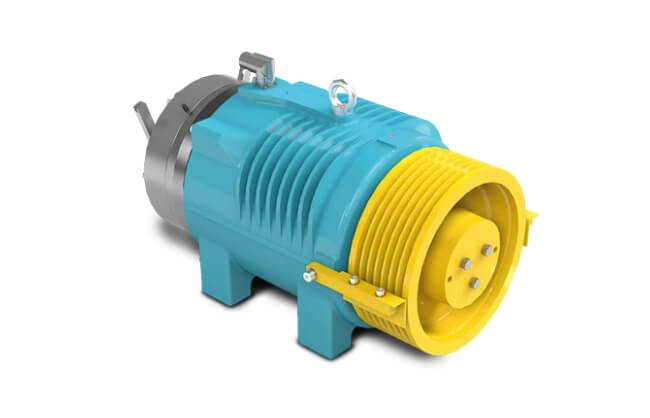

We offer the MAST-MRL type traction elevators for buildings not having machine room space or for buildings that necessarily neeed a gearless traction machine. MAST-MRL elevators are designed according to TS EN 81-20/50 standarts, and they come in one type which is gearless.
Technical Specifications
| Rated Load (Kg): | 320-2000 |
| Suspension: | 1:2 |
| Machine Room: | MRL |
| Max Travel (m): | 70 |
| Max Number of Stops: | 28 |
| Max Speed (m/s): | 2.5 |
| Min Pit Depth (mm): | v ≤ 1.0 m/s 1400 | v = 2.5 m/s 2200 |
| Min Headroom (mm): | v ≤ 1.0 m/s 4200 | v = 2.5 m/s 5300 |
| Compiles with: | TS EN 81-20/50 |

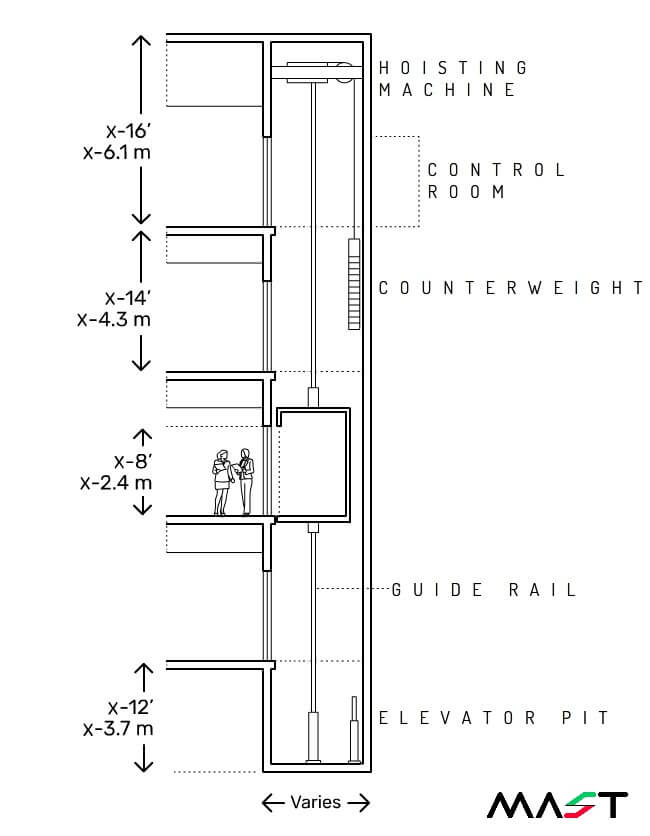

STANDART DIMENSIONS FOR MRL TYPE ELEVATORS
