Traction Elevators

(MR-Machine Room)

Home / Elevators / Elevator Systems / Traction Elevators

ABOUT TRACTION ELEVATORS (ELEVATORS WITH MACHINE ROOM)

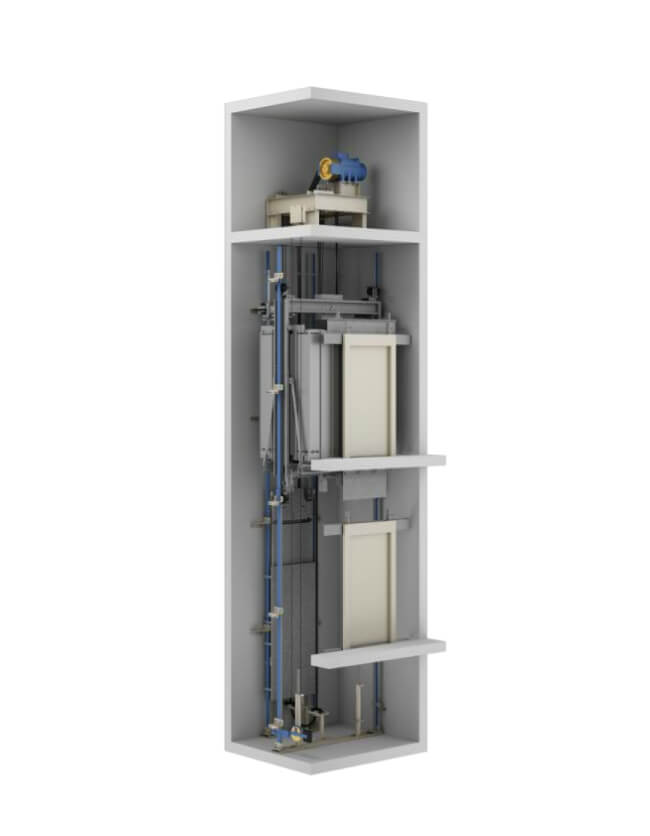

Traction elevators are known to be the oldest conventional elevator systems. The machine room is usually located above the elevator shaft. Motor and control systems are located in the machine room.


MAST-MR

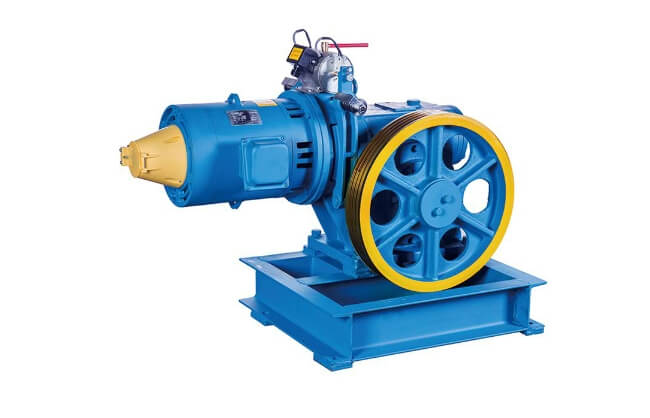

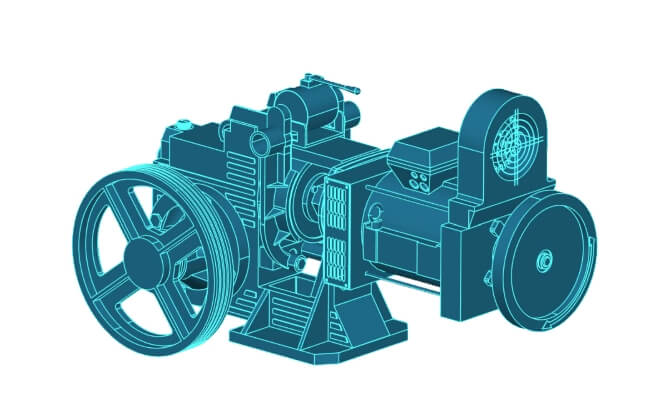

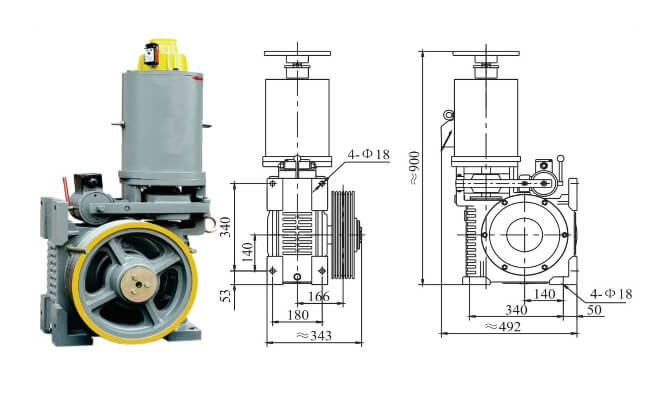

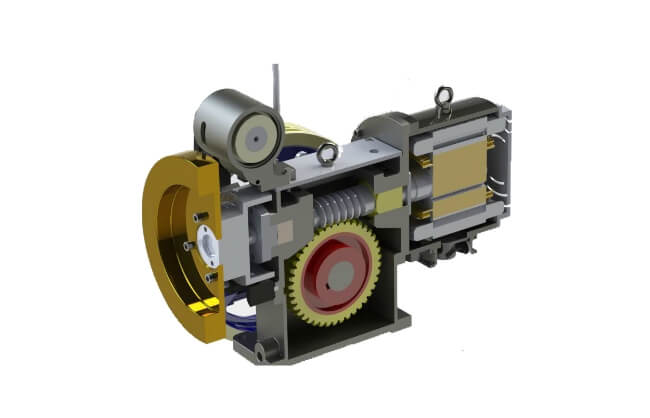

We offer the MAST-MR type traction elevators for buildings having machine room space. MAST-MR elevators are designed according to TS EN 81-20/50 standarts, and they come in with two types of motors which are geared and gearless.


Technical Specifications

Rated Load (Kg): 225-5000
Suspension: 1:1 | 1:2 | 1:4
Machine Room: MR
Min. Machine Room Height (mm):   2200
Max. Travel (m): 90
Max. Number of Stops: 30
Max. Speed (m/s): 3
Min. Pit Depth (mm): v ≤ 1.0 m/s 1400 | v = 3.0 m/s 3200
Min. Headroom (mm): v ≤ 1.0 m/s 3800 | v = 3.0 m/s 6200
Compiles with: TS EN 81-20/50

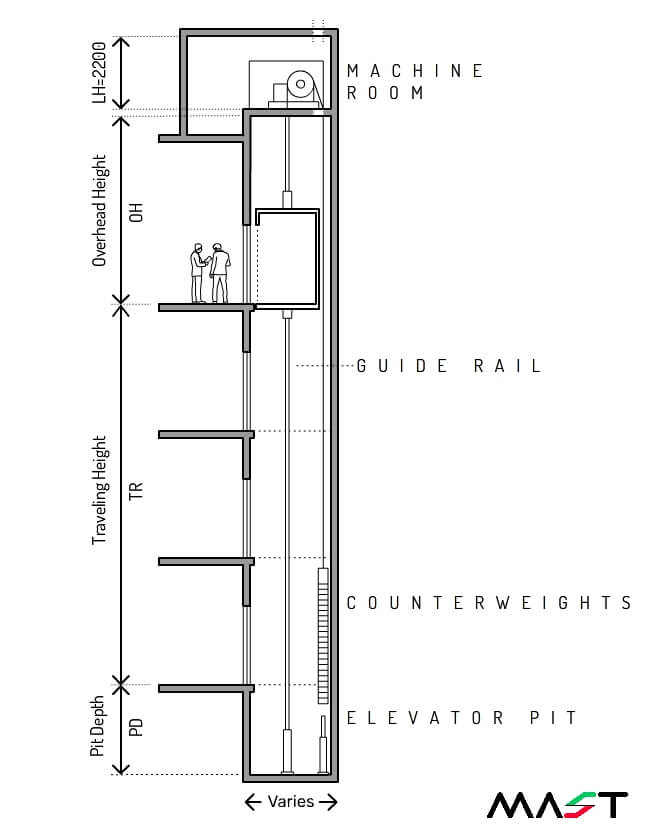

ELEVATOR SCHAFT DRAFT
